Frame

61CT

Rated Current(In)

A

100

Rated Voltage(Ue)

V

AC600

Rated Insulation Voltage(Ui)

V

AC800

Rated Impulse Voltage(Uimp)

kV

8

Pole

P

2,3,4

Throw

T

Double Throw

Connection Type

Front

●

Back

-

Performance

Short Time Current(1s)             lcw

kA

5

Short Circuit Peak Current          lcm

kA

5

With Specific Circuit Breaker

kA

14

Fuse Mounting

kA

200

Switch Capacity Note1)

Class

AC-33B

Endurance

Electrical

Cycles

5,000

Mechanical

Cycles

10,000

Transfer Sequence

A↔overlapping↔B, A↔B, A↔Neutral(off)↔B

Conduction for Uninterrupted Switchover

Phase difference : Within electrical angle 10°, Frequency difference : Within 0.2Hz,

Voltage : Voltage difference with the commercial one is within 5%,

Instantaneous Interconnection Time : Within 0.05 second

Operation Time

Closing

msec

≤60

Trip

msec

≤20

Conditions of Uninterruptible Transfer

2P

3P

4P

Closing

AC/DC 110V

A

5

5

7

AC 220V

A

2.5

2.5

3.5

Trip Note2)

AC/DC 110V

A

3

AC 220V

A

1.5

Dimensions & Weights

Front Size(mm)

H

268

268

268

W

210.8

240.8

270.8

D

111

111

111

Back Size(mm)

H

-

-

-

W

-

-

-

D

-

-

-

Weight

Front

kg

6.5

8

10

Back

kg

-

-

-

Additional Product Information

Circuit diagram

A6-24

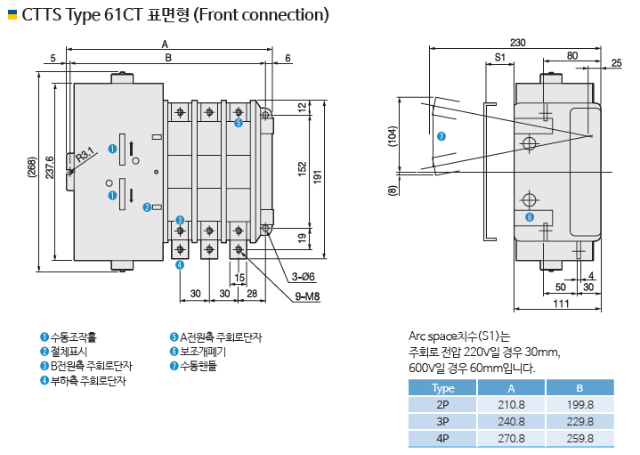

Drawing

A6-40~42

Precautions

A6-18
