Frame

625WN

630WN

Rated Current(In)

A

2500

3000

Rated Voltage(Ue)

V

AC600

AC600

Rated Insulation Voltage(Ui)

V

AC800

AC800

Rated Impulse Voltage(Uimp)

kV

8

8

Pole

P

3,4

3,4

Throw

T

Double Throw

Double Throw

Connection Type

Front

-

-

Back

●

●

Performance

Short Time Current(1s)                   lcw

kA

50

50

Short Circuit Peak Current                lcm

kA

50

50

With Specific Circuit Breaker

kA

85

85

Fuse Mounting

kA

200

200

Switch Capacity Note1)

Class

AC-33B

AC-33B

Endurance

Electrical

Cycles

3,000

3,000

Mechanical

Cycles

5,000

5,000

Transfer Sequence

A↔B, A↔Neutral(off)↔B

Operation Time

Closing

msec

≤180

≤180

Trip

msec

≤35

≤35

Conditions of Uninterruptible Transfer

3P

4P

Closing

AC/DC 110V

A

-

-

-

-

AC 220V

A

12

15

12

15

Trip Note2)

AC/DC 110V

A

-

-

AC 220V

A

2

2

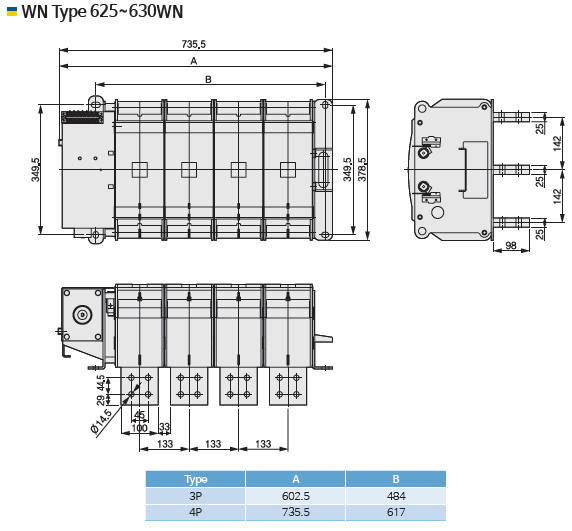

Dimensions & Weights

Front Size(mm)

H

-

-

-

-

W

-

-

-

-

D

-

-

-

-

Back Size(mm)

H

378.5

378.5

378.5

378.5

W

602.5

735.5

602.5

735.5

D

326

326

326

326

Weight

Front

kg

-

-

-

-

Back

kg

92.5

119

92.5

119

Additional Product Information

Circuit diagram

A6-19

A6-19

Time chart

A6-18

A6-18

Drawing

A6-32

A6-32

Precautions

A6-14

A6-14
